| Tower Crane |
| Specifications of Tower Crane : |
| Model |
Standard length of jib
(m) |
Lifting capacity at the tip of jib(ton) |
Lifting height (free height/max. height wiht attached)
(m) |
Standard section dimension
(m) |
Total power
(kw) |
Total weight
(ton) |
| QT20 (TC3006) |
30 |
0.6 |
27 |
1.4x1.4x2.4 |
15.4 |
9.8 |
| QTZ20 (TC3006A) |
30 |
0.6 |
27/50 |
1.4x1.4x2.4 |
15.4 |
11.3 |
| QTZ25 (TC3008A) |
30 |
0.8 |
27/70 |
1.4x1.4x2.4 |
18.8 |
12.25 |
| QTZ31.5(TC3508) |
35 |
0.8 |
29/70 |
1.4x1.4x2.4 |
18.8 |
14.5 |
| QTZ31.5 (TC4207) |
42 |
0.7 |
31/90 |
1.5x1.5x2.2 |
21.2 |
20.5 |
| QTZ40 (TC4208) |
42 |
0.8 |
31/120 |
1.5x1.5x2.2 |
22.7 |
21.7 |
| QTZ50 (TC4610) |
46 |
1.0 |
36/120 |
1.5x1.5x2.2 |
22.7 |
26 |
| QTZ63 (TC5013) |
50 |
1.3 |
40/120 |
1.6x1.6x2.5 |
31.7 |
30.5 |
| QTZ63 (TC5013A) |
50 |
1.3 |
40/120 |
1.7x1.7x2.5 |
31.7 |
31.5 |
| QTZ80 (TC5512) |
55 |
1.2 |
45/150 |
1.8x1.8x2.5 |
42.4 |
42 |
| QTZ125 (TC6014A) |
60 |
1.4 |
50/200 |
2x2x3 |
67 |
56 |
| ATZ160 (TC6020) |
60 |
2.0 |
52.6/160 |
2x2x2.8 |
71.5 |
69 |
|
| |
| |
| Specifications of Site Lifter : |
| Model |
SL1-11E |
SL1-8E |
| Capacity |
1000 kg |
1000 kg |
| Max. Frame height |
60 m |
80 m |
| Standard frame height |
24 m |
24 m |
| Size of lifting cage |
2000x1950 mm |
3500x1750 mm |
| Height of each section |
6m |
1.5m |
| Total Power |
11 kw |
7.5 kw |
| Max. Lifting speed |
25 m/min |
25 m/min |
| Weight |
3200 kg |
2800 kg |
|
| |
|
| |
 |

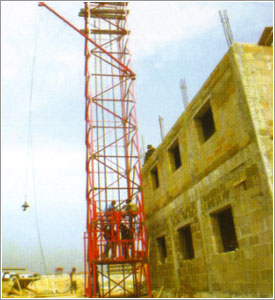

| SL1-11E(SSB100) |
| |
 |

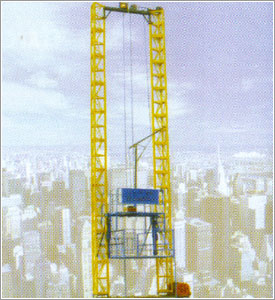

| SL1-8E (SSE100) |
| |
 |
