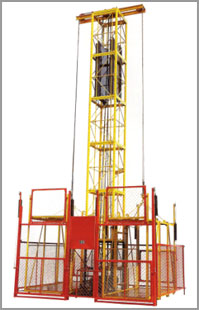

| Twin Cage Material Hoist |
| Click here to view Working Video |
| |
| We have launched a very efficient and innovative Builder’s / Materials Hoist using state of the art technology. Here are a few details: |
| |
| Features |
 |
Safety equipments of the highest standards have been installed to ensure a more trustworthy work environment |
|
The speed of transportation of material increases to 52 m/min |
|
Materials of all kinds can be transported. Concrete can be directly poured on a wheelbarrow and be unloaded at construction site directly |
|
Each cage has a load capacity of 600 kg having huge space for materials |
|
No scaffoldings are required. The mast can be directly tied to building. Thus, cost of scaffolding is saved |
|
Two separate traction machines allow individual free working of cages at the same time |
|
| |
| Specifications |
| Capacity |
3 Ton (Each Cage 1.5 Ton + 1.5 Ton) |
| Mast |
Made of tubular section with bracings. Size – 900 x 900 x 1508 mm |
| Speed |
52 M/Min |
| Cage Dimension |
3.0 x 1.3 x 2.3 Mtr. (Twin Cages) |
| Working Height |
Any height |
| Cage |
Twin |
| Tie Rod |
Provided |
| Safety systems to be included |
1. Upper/Lower limiting device
2. Fall arrestor
3. Guide wheel
4. Twin machine tracking system |
| Wire Rope |
Included – Cage is hanged on 3 rope |
| Rated load of cage |
Each cage (600 kg + 600 kg) = 1200 kg |
|
|
 |
|
| |
| Safety Features |
| Wire Rope : The lift is towered by 3 wire ropes, and the cage is installed with rope-break protecting device and landing protective device such that the possibility of rope break falling accidents is greatly reduced. |
|
| |
| |
 |
| Upper and Lower Limiting Device |
| When the suspension cage reaches the established, maximum or minimum height, power supply will be automatically disconnected and the cage will immediately stop operating. This maximizes construction safety. |
|
|
|
 |
| Fall Arrestor |
| When the hauling cable breaks, the safety hook will automatically arrests the fall. |
|
|
|
 |
| Guide Wheel |
| Two-way outer-clamping rolling design allows the suspension cage to operate in a more flexible and steadier manner. |
|
|
|
 |
| Twin-Machine Traction System |
| Each machine is an independent system. Both the machines work in a sink. Highly swift, convenient and efficient. |
|
|
|
| |
